Charmhigh CHM-T560P4 Chip Mounter Machine SMT Pick And Place

Product Categories
HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.
Contact Now

Charmhigh CHM-T560P4 Chip Mounter Machine SMT Pick And Place

Brand Name : Charmhigh

Model Number : CHM-T560P4

Place of Origin : China

MOQ : 1 set

Price : Negotiable Price

Payment Terms : T/T

Supply Ability : 10 set/day

Delivery Time : 10-12 work day

Packaging Details : wooden

Name : 4 head SMT vision Pick and Place Machine

Brand : Charmhigh

Model : CHM-T560P4

Mounting head : 4

Weight : 140KG

Warranty : 12 months

Mounting speed : 8000cph(optimal without vision detection);

Contact Now

Charmhigh CHM-T560P4 best SMT pick and place machine chip mounter machine chip pick and place machine

Specification

Dimensions 1180mm(L)×870mm(W)×640mm(H)
Weight 140kg
Power Supply AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 400W
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4
Mounting Speed 8000cph(optimalwithout vision detection); 5500cph (optimal with vision detection)
Control Accuracy 0.015mm
Component Type 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 10mm(L)×10mm(W)～400mm(L)×290mm(W)
PCB Conveying Manual operation
Nozzle Change Manual operation
Control System Built-in computer (embedded Linux operating system), 7-inch touch screen
Drive System X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration
Transmission System Synchronous belt + linear guide
Feeding System 60 Yamaha 8mm standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported
Vision System Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning

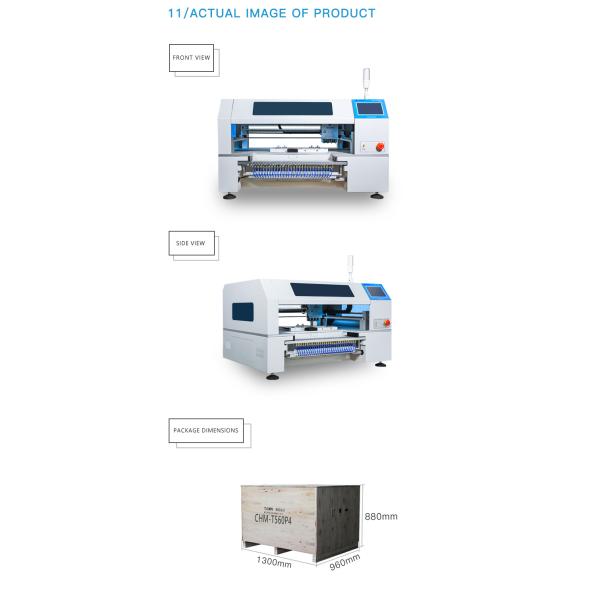

Charmhigh CHM-T560P4 Chip Mounter Machine SMT Pick And Place

Charmhigh CHM-T560P4 Chip Mounter Machine SMT Pick And Place

Certificates

Charmhigh CHM-T560P4 Chip Mounter Machine SMT Pick And Place

FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?
A: Manufacturer

Q: What is your delivery date?
A: The delivery date is about 3-7days after receipt of payment.

Q: Why choose us?
A: Leading SMT Manufacturer in China; Professional after-sales service team.
